The weakest points of any architectural wall system are its exposed edges and 90-degree external corners. This operational reality is especially true when installing a Bamboo Charcoal Panel setup. Failing to properly protect these vulnerable areas leads to significant issues over time. You might face moisture ingress, rapid delamination, and frustrating client callbacks. Such failures severely compromise structural integrity, particularly in high-traffic commercial or campus environments where durability is paramount. To prevent these costly setbacks, contractors and architects need reliable edge treatment strategies. We will provide a thorough technical evaluation of the three primary corner protection methods available today. Our goal is to help you make data-backed installation decisions. You will learn how to balance aesthetic demands against physical wear and environmental stresses.
Metal & PVC Trims: Offer the highest impact resistance and compliance for high-traffic commercial spaces.
V-Groove Folding: Provides a seamless aesthetic favored in luxury residential builds but requires specialized tooling and compromises raw corner impact strength.
Material Specificity Matters: Glossy finishes, such as a Mirror Surface WPC Bamboo Charcoal Panel, require exact cutting protocols (e.g., fine-tooth blades) to prevent micro-chipping at the corner joints.
Environmental Context: The choice of edge protection must align with the room's moisture levels, traffic intensity, and local building code compliance.
Exposing the core material of any composite panel invites immediate environmental risks. Ambient humidity constantly interacts with unprotected substrates in modern building environments. When moisture infiltrates an exposed panel edge, it causes the core fibers to swell. This swelling eventually pushes the decorative veneer away from the base layer. Delamination rarely fixes itself and often requires full panel replacement. You must seal these exposed edges to block moisture ingress effectively.
Physical impact vulnerability poses another massive threat to unprotected 90-degree corners. Everyday operations subject walls to heavy wear and tear. Cleaning carts, heavy backpacks, and foot traffic routinely graze external corners. A direct impact easily shatters the delicate surface veneer if it lacks structural reinforcement. Commercial spaces experience this type of physical trauma daily. Even careful residential environments see accidental bumps from furniture moving or vacuum cleaners.
Aesthetic degradation quickly follows physical damage. Chipped edges instantly ruin the high-end finish clients expect. Architects and designers meticulously plan monolithic wall textures. A frayed or broken corner shatters this visual illusion immediately. Project managers know these defects lead directly to rejected punch lists. When clients refuse to sign off on damaged aesthetics, contractor payments face severe delays. Protecting the corners is fundamentally about protecting your project's profitability and reputation.
The most robust way to protect an external corner relies on dedicated architectural trims. You can install L-shaped or J-channel profiles directly over or behind the panel edges. Manufacturers produce these extrusions in aluminum, stainless steel, and color-matched PVC. Aluminum offers a lightweight yet rigid barrier against direct strikes. Stainless steel delivers maximum hospital-grade durability. Color-matched PVC provides a softer, more integrated visual look while maintaining decent impact deflection.
These dedicated trims serve best in high-traffic commercial areas. Hospitals, educational campuses, and busy public corridors demand extreme durability. In these settings, compliance and longevity prioritize over a perfectly monolithic aesthetic. Building managers prefer metal trims because they absorb cart impacts without transferring the shock into the wall substrate. They also meet stringent commercial building codes for high-traffic wear.
Implementing this method requires careful mathematical planning during the layout phase. You must factor the trim's exact thickness into your overall wall dimension calculations. Ignoring this step leads to misaligned panel joints across the rest of the wall. Additionally, thermal expansion gaps must exist inside the trim channel itself. The core panel needs room to breathe as room temperatures fluctuate.
Consider the following pros and cons when selecting this method:
Maximum protection: Metal profiles deflect massive amounts of kinetic energy.
Fast installation: Trims slide easily into place and hide minor cutting imperfections.
Material transition: They introduce a highly visible material shift between the trim and the panel surface.
Cost variability: Stainless steel dramatically increases material budgets compared to PVC options.
For designers prioritizing a flawless visual finish, the V-groove back-folding technique offers stunning results. The mechanism involves routing a precise 90-degree V-shaped groove into the back of the panel. The router bit cuts completely through the core but stops just micrometers short of the front veneer. Installers then fold the panel around the corner. The intact front veneer acts as a continuous living hinge. This eliminates visible seams entirely.
High-end hospitality projects and luxury residential builds heavily favor this approach. The technique delivers a beautifully continuous wood-grain or stone-texture aesthetic. Designers love the monolithic appearance it creates on complex architectural columns. The unbroken visual flow elevates the perceived value of the entire room. When done correctly, the corner looks like a solid block of premium material.

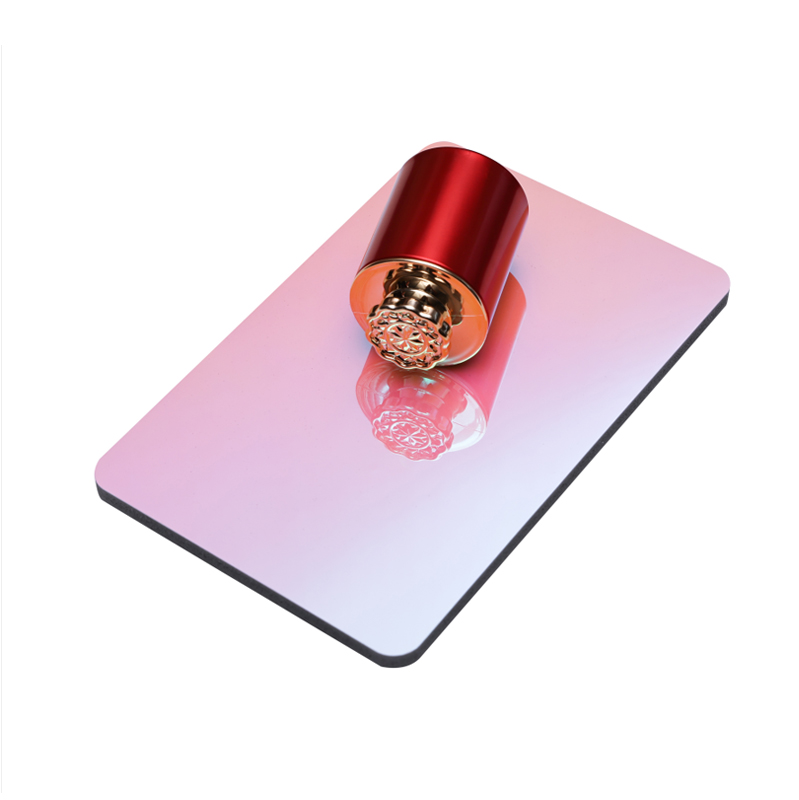

Handling specialized finishes demands extreme caution during this process. A Mirror Surface WPC Bamboo Charcoal Panel features a highly rigid, glossy wear layer. This dense layer easily cracks if the V-groove is routed even slightly too deep. You must apply gentle heat and use structural adhesive inside the joint before folding. The adhesive cures inside the folded cavity, providing the necessary rigid support behind the fragile mirror veneer.
The implementation reality of V-grooving is notoriously unforgiving. The process requires precision CNC machinery or specialized track saws equipped with depth stops. Field tolerances are effectively zero. If the blade penetrates the veneer, the entire panel goes into the waste bin. If the fold lacks internal adhesive support, the corner remains hollow and will puncture under the slightest finger pressure.
Edge banding combined with architectural sealants offers a highly flexible, low-profile protection method. Installers apply heat-activated or self-adhesive edge banding strips directly to the raw cut edges. These strips visually match the panel's face veneer. To complete the protection, workers apply specialized polyurethane or silicone sealants along the micro-seams. This creates a highly customized, moisture-resistant barrier.
This method finds its best use case in low-traffic areas. You should deploy edge banding on top or bottom concealed edges where direct physical impacts remain unlikely. It also serves as an excellent solution for retrofitting exposed cuts around complex window frames or electrical boxes. When you cannot fit a bulky metal trim, edge banding steps in to seal the substrate.
Site implementation requires patience and the correct tooling. Applying edge banding successfully demands specialized edge-banding irons. You also need precise edge trimmers to sheer off any excess material. Failing to trim correctly leaves sharp lip overhangs. These overhangs easily snag on clothing or cleaning cloths. Furthermore, the applied sealants must be structurally rated. Do not use cheap decorative acrylic caulk, as it shrinks and pulls away from the substrate.
This technique presents a specific set of advantages and limitations. It remains highly cost-effective compared to custom CNC routing. It adapts instantly to weirdly shaped architectural cutouts. However, it offers the absolute lowest physical impact resistance among the three primary methods. A direct hit from a vacuum cleaner will dent or peel an edge-banded corner easily.
Selecting the correct edge treatment requires balancing project constraints against aesthetic desires. You cannot apply a single solution to every room. Different zones inside a building experience vastly different stressors. A hospital corridor needs different engineering than a penthouse bedroom. We rely on a structured matrix to guide specifiers toward the safest, most logical conclusion.
Understanding traffic volume versus aesthetic demand drives the primary decision. High-traffic utility zones strictly require metal trims to survive daily abuse. Low-traffic spaces focused on high aesthetics justify the complexity of V-groove folding. Budget-constrained projects or fully concealed edges benefit greatly from simple edge banding. The matrix below outlines this logic clearly.
Project Environment | Primary Requirement | Recommended Method | Relative Impact Resistance |
|---|---|---|---|
High Traffic / Utility | Durability & Compliance | Metal or PVC Trims | Maximum |
Low Traffic / High Aesthetic | Visual Continuity | V-Groove Folding | Moderate to Low |
Budget / Concealed Edges | Moisture Sealing | Edge Banding | Low |
Substrate and compliance constraints dictate material choices in commercial settings. Many educational campuses enforce strict fire safety ratings. Metal trims inherently pass flame spread tests without adding combustible mass to the corner. You must also evaluate corner-impact testing standards. Some building codes require corners to withstand a specific force rating, effectively mandating stainless steel profiles.
Evaluate the cost-to-benefit ratio before committing to an installation strategy. V-grooving saves money on trim materials but consumes massive amounts of skilled labor time. CNC machine time and potential waste panels add hidden costs. Conversely, premium stainless steel trims carry a high upfront material invoice. However, they drastically reduce labor hours because installers simply snap them into place.
Even the best edge protection strategy fails if the fundamental installation is flawed. Field modifications often introduce microscopic damage before the protective element even touches the wall. Contractors must control their tooling and chemical environments precisely. Avoiding common site errors guarantees a longer lifespan for the wall system.
Tooling Failures: Using standard wood blades destroys composite panels. Standard blades have too few teeth and rip the material violently. You must use high-tooth-count (100T-120T) aluminum or laminate blades. High tooth counts slice through the tough surface layer smoothly. Failing to switch blades results in severe veneer chipping before the corner treatment is even applied.
Adhesive Curing Issues: Folded corners need robust internal support. Installers often rely purely on instant cyanoacrylate (CA) glue for a fast hold. CA glue cures highly brittle and snaps under vibration. You should always combine CA glue for the initial tack with structural MS polymer adhesives. The MS polymer cures flexibly and absorbs future physical impacts.
Expansion Negligence: Composite panels expand and contract as room temperatures fluctuate. Installers routinely fail to leave a 2-3mm expansion gap inside metal trim channels. When the panels expand, they hit the rigid trim wall. With nowhere else to go, the panels buckle outward, destroying the entire wall plane. Always measure your gaps.
Site supervisors must inspect the initial cuts daily. Catching a dull blade early saves thousands of dollars in ruined panels. Test your MS polymer adhesives on scrap pieces to verify curing times in your specific climate. Cold weather drastically slows down adhesive activation. Finally, always clean the dust off the back of the panel before applying any adhesive or sealant.
The right corner protection carefully balances artistic aesthetic vision with the harsh realities of site traffic. Protecting architectural edges ensures the long-term viability of the entire wall system. Moisture ingress and physical impacts destroy unprotected panels quickly. Implementing strong edge treatments prevents these costly failures.
Specifiers should always match the protection method directly to the project's warranty requirements. Never specify V-groove folding if the installer lacks CNC tooling capabilities. Rely on robust metal trims for high-traffic environments to guarantee compliance and durability. Let the room's functional purpose dictate the engineering solution.
As a next step, order sample pieces of metal trims to test against your selected wall finishes. Test a V-groove cut on a scrap piece of panel to verify your blade sharpness and routing depth. Finally, consult directly with your panel manufacturer to confirm which structural adhesives they officially approve for their specific core material.
A: Spot repairing a chipped veneer is extremely difficult and rarely invisible. Fillers often fail to match the complex printed textures or glossy finishes. In most cases, replacing the damaged metal trim or swapping out the entire folded panel is the only way to restore the original architectural standard.
A: Altering the core structure by removing material often shifts liability away from the manufacturer and onto the installer. Because the core provides the panel's impact resistance, routing it out hollows the structure. Always verify warranty terms with specific brand documentation before mass-producing V-groove corners.
A: Use extruded J-trims equipped with built-in weep holes. Elevate the trim slightly off the floor. Fill the internal channel with a high-quality, mold-resistant sanitary silicone before inserting the panel. This prevents rising dampness from wicking up into the exposed core fibers.
A: Yes, rigid mirror veneers can snap easily due to high surface tension. To prevent this, you must control the routing depth perfectly, leaving just enough backing attached. Installers also use gentle, controlled heat to soften the wear layer slightly, allowing it to bend smoothly without shattering.
